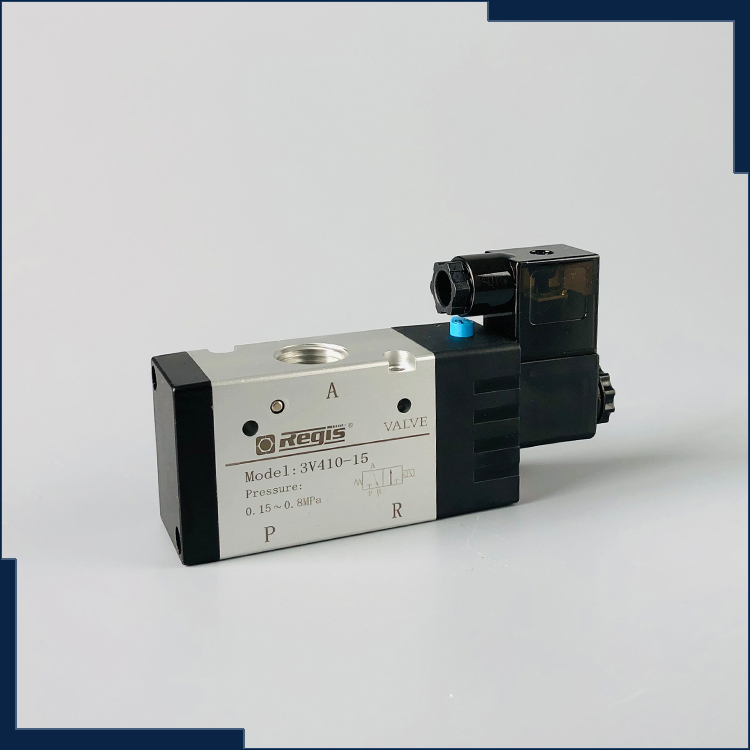

| Model | 3V110-M5 | 3V110-06 | 3V210-06 | 3V210-08 | 3V310-08 | 3V310-10 | 3V410-15 |
| Working medium | Clean air | ||||||
| Acting type | Internal Guide | ||||||
| Joint size | Inlet=M5 | Inlet=1/8 | Inlet=1/8 | Inlet=1/4 | Inlet=1/4 | Inlet=3/8 | Inlet=1/2 |
| Outlet=M5 | Outlet=1/8 | Outlet=1/8 | Outlet=1/4 | Outlet=1/4 | Outlet=3/8 | Outlet=1/2 | |
| Sectional area | 5.5mm² | 12mm² | 14mm² | 16mm² | 25mm² | 30mm² | 50mm² |
| (CV=0.31) | (CV=0.67) | (CV=0.78) | (CV=0.89) | (CV=1.39) | (CV=1.67) | (CV=2.79) | |
| Working pressure | 0.15 to 0.8Mpa | ||||||
| Max. Working pressure | 1.2Mpa | ||||||
| Working temperature | -5 to 60℃ | ||||||
| Valtage tolerance | -15% to 10% | ||||||
| Heat resistant grade | B | ||||||
| Protective class | IP65(DIN40050) | ||||||
| Coil type | Din type, Flying leads | ||||||
| Max. Acting frequency | 5 times/s | 4 times/s | |||||
