The rod guided cylinder is a type of guided cylinder that combines ultra-high precision, excellent anti-lateral load capacity, double-acting drive, and powerful thrust in one unit.
Common Compact air cylinders include CY3B, CY3R, CY1S and CY1L series cylinders.
It is SMC type Rodless air cylinder.
The CY3B series is the basic type of the Magnetically Coupled Rodless Cylinder with improved bearing performance.
Features
• A good lubrication film is formed on the outer peripheral surface of the cylinder tube for improved durability.
• Reduced sliding resistance.
| Bore Size | Stroke Length | Port Size | Acting Type | Working Pressure | Magnet Switch |
|---|---|---|---|---|---|
| CY3B ø6 to ø63 | Multiple | M5X0.8 – PT1/4 | Double Acting | 0.18-0.7Mpa | Nil |

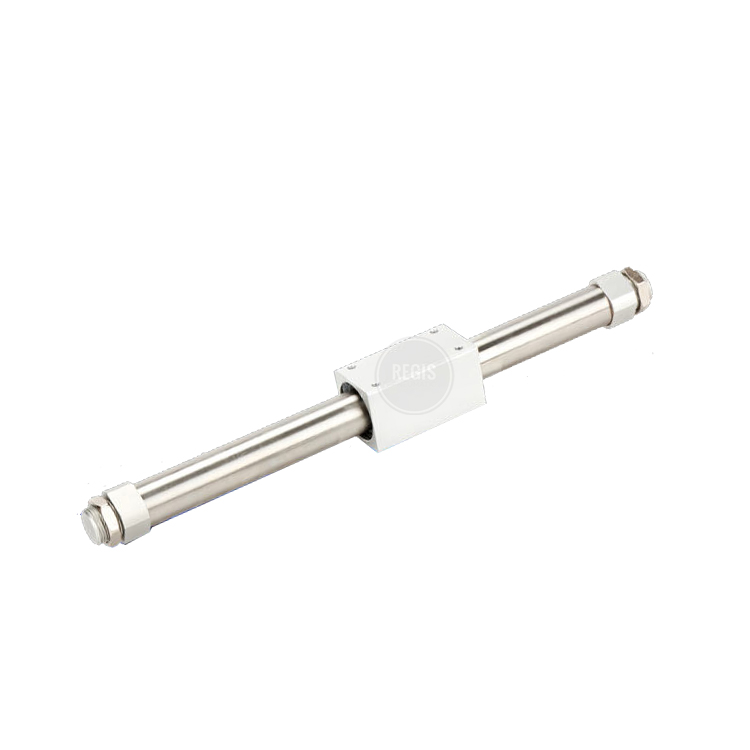

CY3B ø6 to ø63 Magnetically Coupled Rodless Cylinder, CY3B Series
Item CY3B
Mfr. Model CY3B6/10/16/20/25/32/40/50/63
View Product Details
|
|||||
It is SMC type Rodless air cylinder.
The CY3R series is the direct mount type of the Magnetically Coupled Rodless Cylinder with improved bearing performance.
Features
• A further upgrade from the CY1 series
• The installation dimensions are the same as the CY1 series, yet it features improved bearing performance and reduced sliding resistance.
| Bore Size | Stroke Length | Port Size | Acting Type | Working Pressure | Magnet Switch |
|---|---|---|---|---|---|
| CY3R ø6 to ø63 | Multiple | M5X0.8 – PT1/4 | Double Acting | 0.18-0.7Mpa | D-A93 / D-A73 |

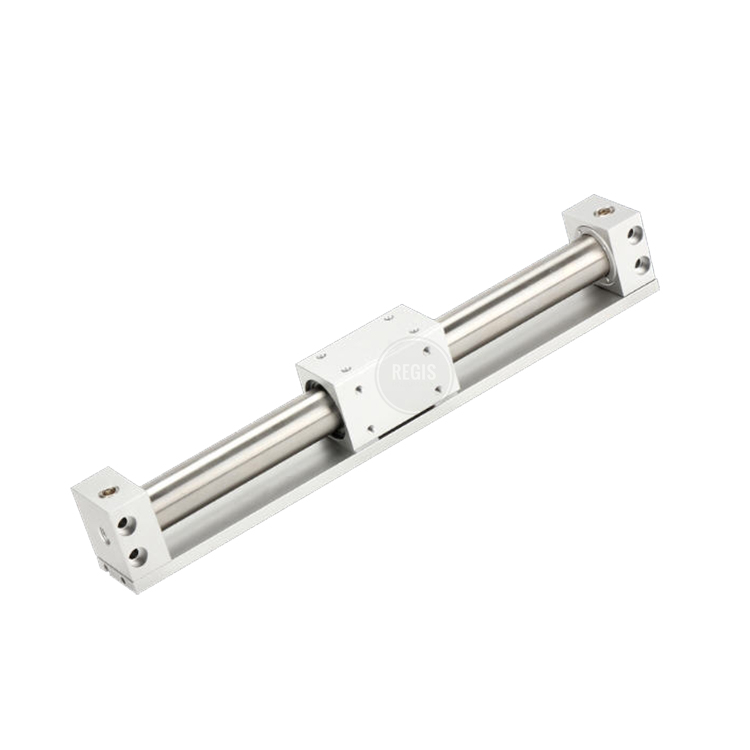

CY3R ø6 to ø63 Magnetically Coupled Direct Mount Rodless Cylinder, CY3R Series
Item CY3R
Mfr. Model CY3R6/10/16/20/25/32/40/50/63
View Product Details
|
|||||
It is SMC type Rodless air cylinder.
The CY1S series is the slide bearing type of the Magnetically Coupled Rodless Cylinder with improved bearing performance.
Features
• Weight reduced by up to 15% (0.96 kg: conventionally 1.13 kg)
• Overall length reduced by up to 15 mm (240 mm: conventionally 255 mm)
• The inner and outer peripheral surfaces of the cylinder tube are equipped with Lub-retainers to improve lubricity retention.
• Stroke position reproducibility is improved with an adjusting bolt
| Bore Size | Stroke Length | Port Size | Acting Type | Working Pressure | Magnet Switch |
|---|---|---|---|---|---|
| CY1S ø6 to ø40 | Multiple | M5X0.8 – PT1/4 | Double Acting | 0.18-0.7Mpa | D-A93 / D-M9BL |

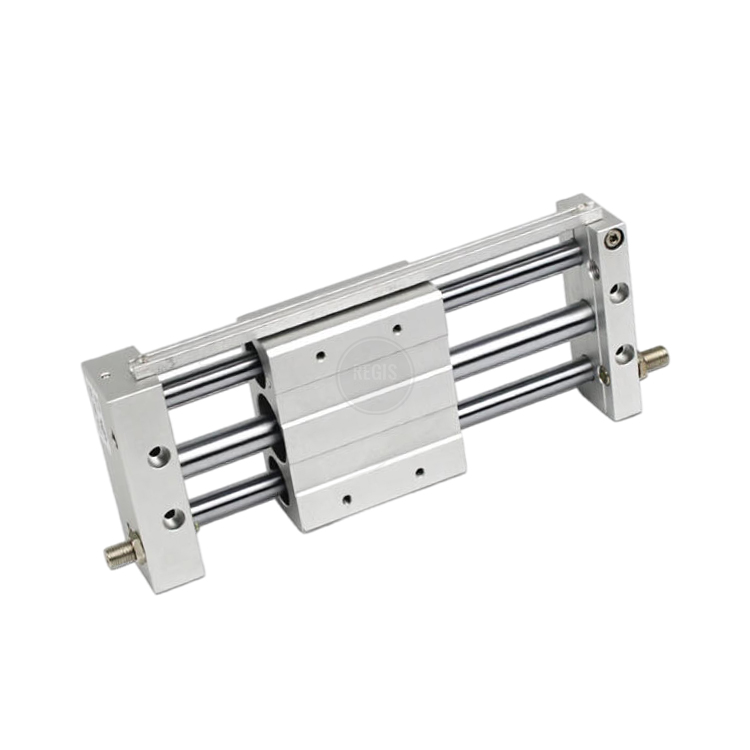

CY1S ø6 to ø40 Magnetically Coupled Rodless Slide Bearing Rodless Cylinder, CY1S Series
Item CY1S
Mfr. Model CY3S6/10/16/20/25/32/40
View Product Details
|
|||||
It is SMC type Rodless air cylinder.
The CY1L series is the Ball Bushing Bearing type of the Magnetically Coupled Rodless Cylinder with improved bearing performance.
Features
• Space-saving cylinder with a wide range of applications thanks to its magnet coupling structure.
| Bore Size | Stroke Length | Port Size | Acting Type | Working Pressure | Magnet Switch |
|---|---|---|---|---|---|
| CY1L ø6 to ø40 | Multiple | M5X0.8 – PT1/4 | Double Acting | 0.18-0.7Mpa | D-A73 |

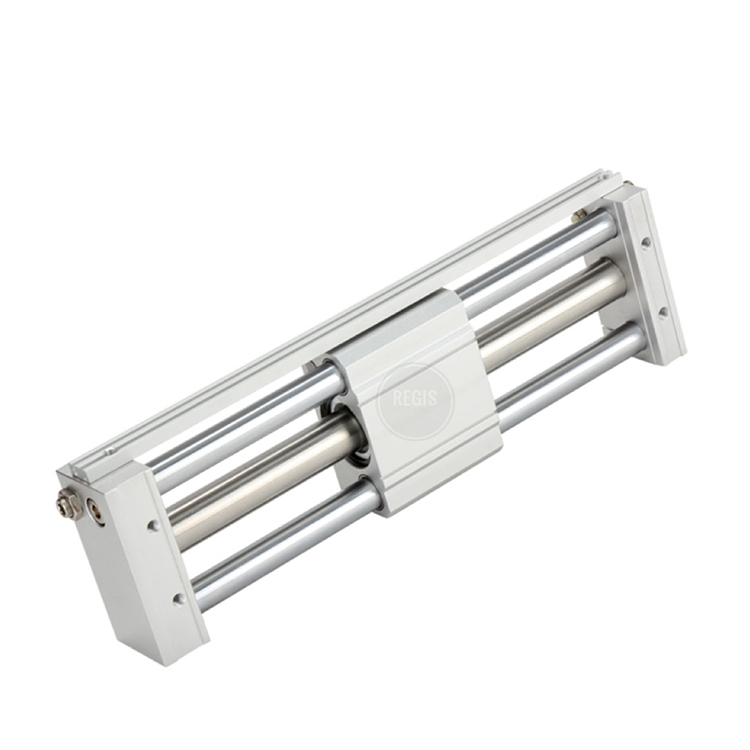

CY1L ø6 to ø40 Magnetically Coupled Ball Bushing Bearing Rodless Cylinder, CY1L Series
Item CY1L
Mfr. Model CY3L6/10/16/20/25/32/40
View Product Details
|
|||||
