PU series solenoid valve has the thread size range from 1/8” to 1”. Timer can be installed to control water drain timely.
1)Fluid applied: Air, Water, Oil, Gas
2)Action model: 220 Direct Drive Type
3)Style: NC style
4)Adapter Diameter: 1/8", 1/4", 3/8, ", 1/2", 3/4", 1"
5) Working pressure: Water: 0~0.7Mpa
6) Max pressure: 1.05 Mpa
7)Operating Temperature: -5~+80C
8)Body Material: Brass
9)NBR seals suited for air, water, neutral gases and mineral oils - Viton seals fuel oil, petrol, hi-test
petrol, diesel fuel - EPDM hot water and liquid detergents.

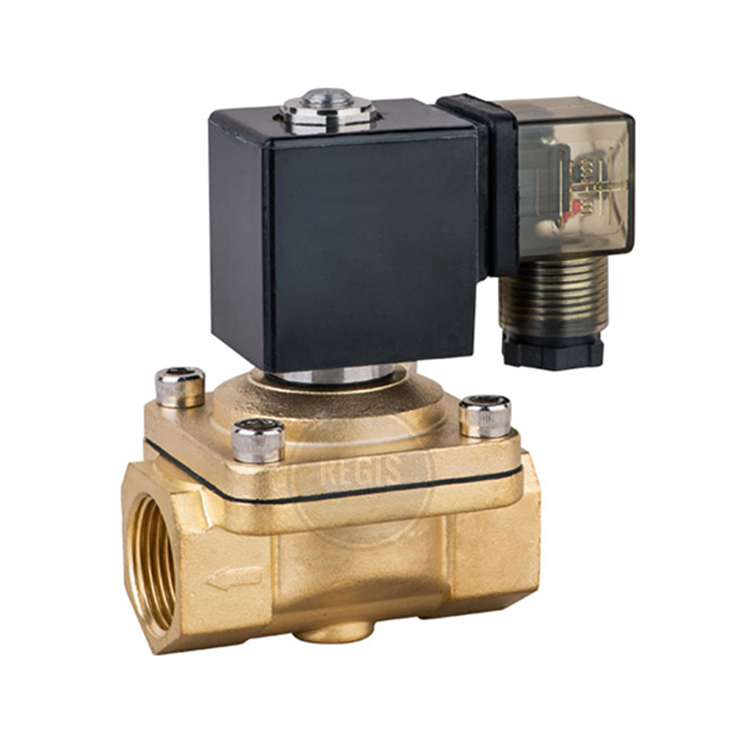

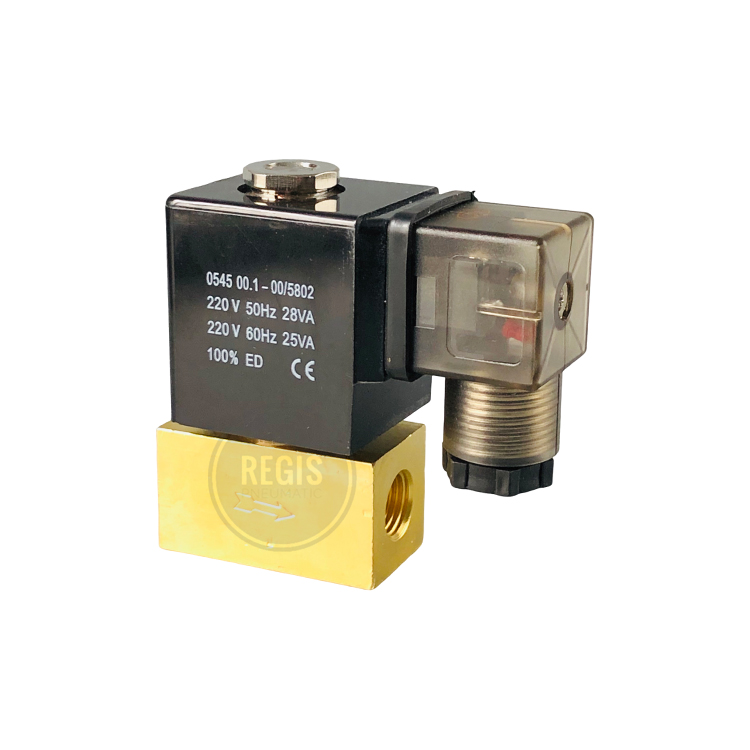

The REGIS PU220 series 2-way Brass solenoid valve is a direct acting open/close electrically actuated valve. For this small aperture type, you can choose different working pressure according to you demand. Like 8Bar, 16Bar, 25Bar and 40Bar.
| Model | Port Size | Orifice(mm) | Material | Types | Working Pressure |
|---|---|---|---|---|---|
| PU220-02S/03S/04S | 02-G1/4" / 03-G3/8" / 04-G1/2" | 8 | Forged Brass | Direct Normal Close | 0-0.8Mpa |
PU220-02S/03S/04S solenoid brass valves 2-way 1/4”3/8”1/2”normally closed 8Bar
Item PU220
Mfr. Model PU220-02S/03S/04S
View Product Details
|
|||||
| PU220-02S/03S/04S | 02-G1/4" / 03-G3/8" / 04-G1/2" | 4.5 | Forged Brass | Direct Normal Close | 0-1.6Mpa |
PU220-02S/03S/04S solenoid brass valves 2-way 1/4”3/8”1/2”normally closed 16Bar
Item PU220
Mfr. Model PU220-02S/03S/04S
View Product Details
|
|||||
| PU220-02S/03S/04S | 02-G1/4" / 03-G3/8" / 04-G1/2" | 3 | Forged Brass | Direct Normal Close | 0-2.5Mpa |
PU220-02S/03S/04S solenoid brass valves 2-way 1/4”3/8”1/2”normally closed 25Bar
Item PU220
Mfr. Model PU220-02S/03S/04S
View Product Details
|
|||||
| PU220-02S/03S/04S | 02-G1/4" / 03-G3/8" / 04-G1/2" | 2.5 | Forged Brass | Direct Normal Close | 0-4.0Mpa |
PU220-02S/03S/04S solenoid brass valves 2-way 1/4”3/8”1/2”normally closed 40Bar
Item PU220
Mfr. Model PU220-02S/03S/04S
View Product Details
|
|||||
| PU220-02S/03S/04S | 02-G1/4" / 03-G3/8" / 04-G1/2" | 2 | Forged Brass | Direct Normal Close | 0-8.0Mpa |
PU220-02S/03S/04S solenoid brass valves 2-way 1/4”3/8”1/2”normally closed 80Bar
Item PU220
Mfr. Model PU220-02S/03S/04S
View Product Details
|
|||||

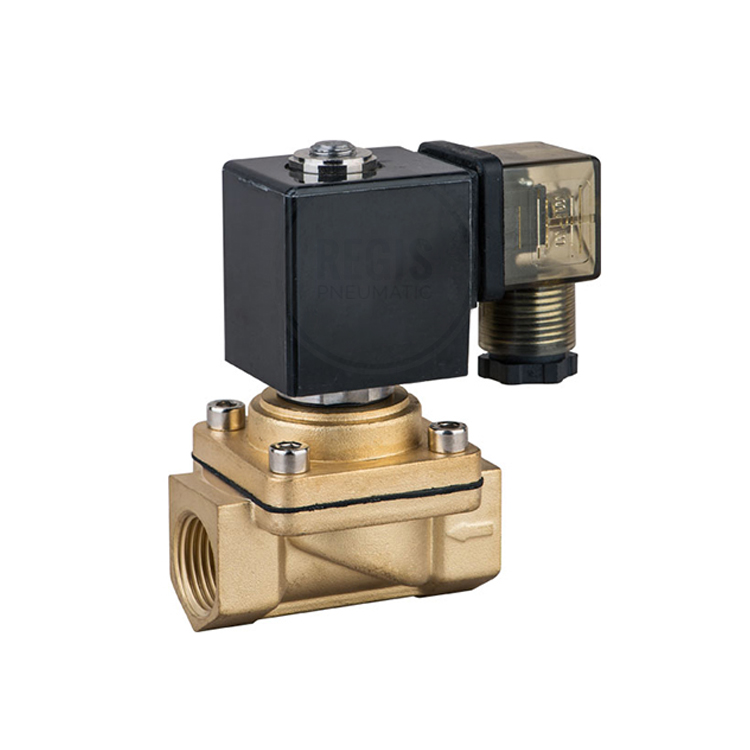

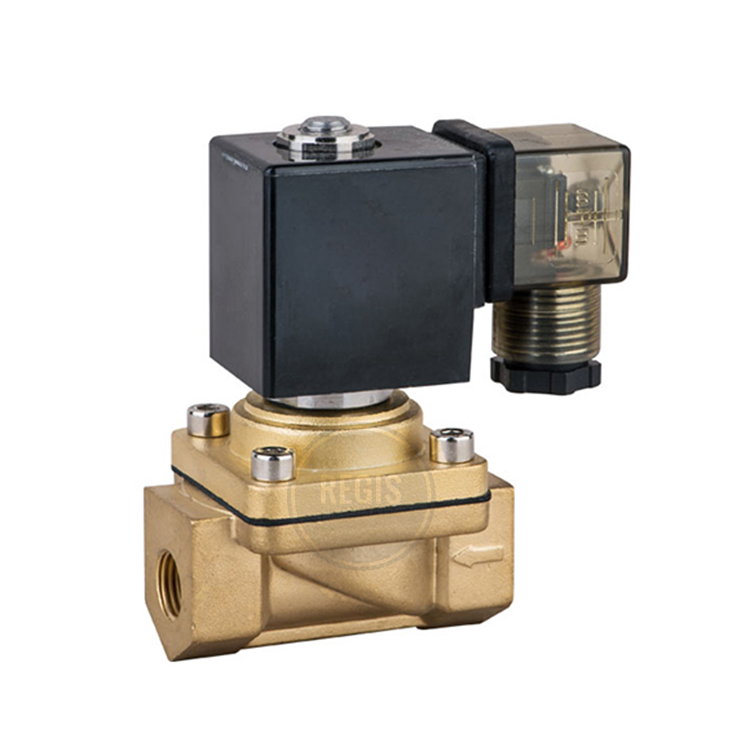

The REGIS PU220 series 2-way Brass solenoid valve is a direct acting open/close electrically actuated valve for the ON/OFF control of fluids and gaseous media that are compatible with the materials of construction. Timer for setting on/off time as optional accessory.
| Model | Port Size | Orifice(mm) | Material | Types | Working Pressure |
|---|---|---|---|---|---|
| PU220-03 | G3/8 | 13 | Forged Brass | Direct Normal Close | 0-0.8Mpa |
PU220-03 solenoid brass valves 2-way 3/8” normally closed
Item PU220
Mfr. Model PU220-03
View Product Details
|
|||||
| PU220-04 | G1/2 | 13 | Forged Brass | Direct Normal Close | 0-0.8Mpa |
PU220-04 solenoid brass valves 2-way 1/2”normally closed
Item PU220
Mfr. Model PU220-04
View Product Details
|
|||||
| PU220-06 | G3/4 | 20 | Forged Brass | Direct Normal Close | 0-0.8Mpa |
PU220-06 solenoid brass valves 2-way 3/4”normally closed
Item PU220
Mfr. Model PU220-06
View Product Details
|
|||||
| PU220-08 | G1 | 25 | Forged Brass | Direct Normal Close | 0-0.8Mpa |
PU220-08 solenoid brass valves 2-way 1”normally closed
Item PU220
Mfr. Model PU220-08
View Product Details
|
|||||
