FRL units are parts installed to prevent problems in air-pressure lines. The name FRL unit comes from the 3 items usually used in the set—an air filter (F), regulator (R) and lubricator (L).
H Series air treatment unit is similar with A series type. There is an up-gradation on the filter bottom. It equipped a connector on the drain port which can connect with a hose.

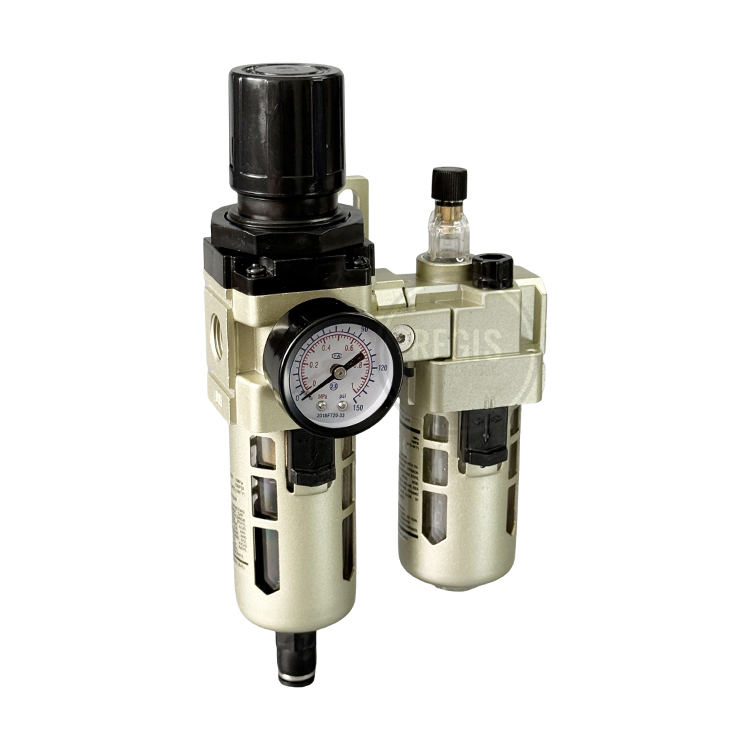

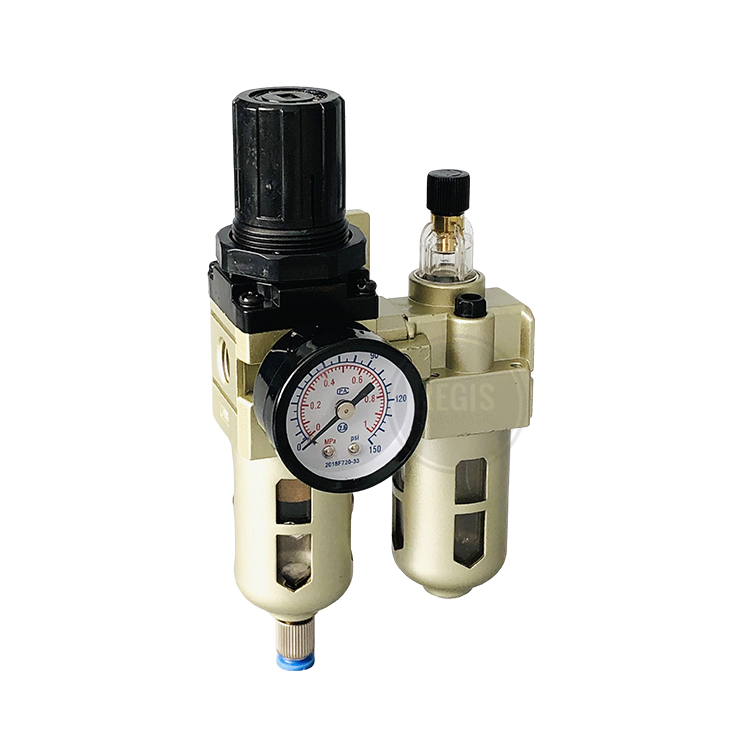

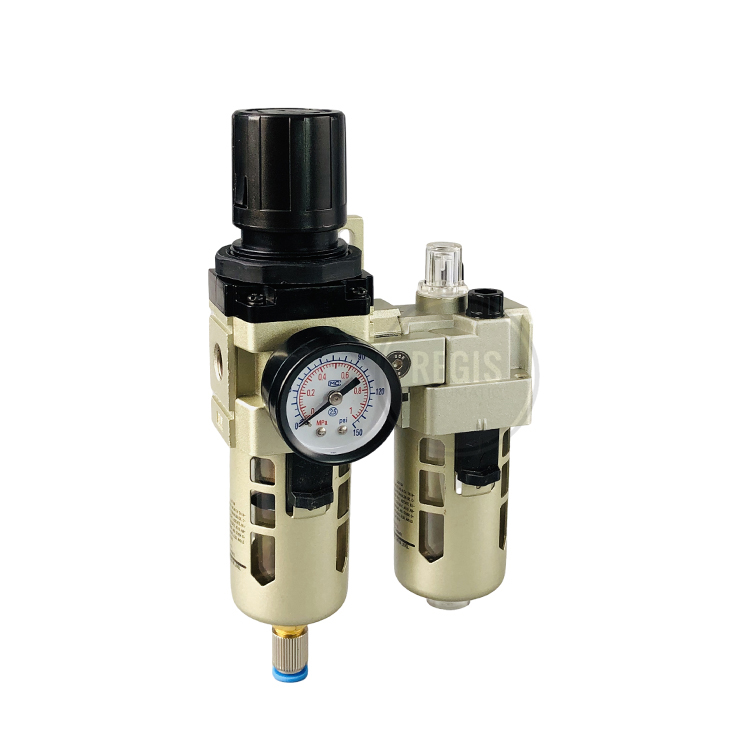

The HC combines a filter, a regulator and mist separator into one unit. The drain part of H series is a one-touch fitting structure.HC10/20 Series is with transparent bowl. HC30/40/50 bowl is covered with metal guard.
| Model | Port Size | Filter Precision | Assembly | Inlet Pressure | Set Pressure |
|---|---|---|---|---|---|
| HC2010-01/02 | 01-G1/8" / 02-G1/4" | 25μm / 5μm | FR+L w/ Manual Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |
|
|||||
| HC2010-01/02D | 01-G1/8" / 02-G1/4" | 25μm / 5μm | FR+L w/ Auto Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |

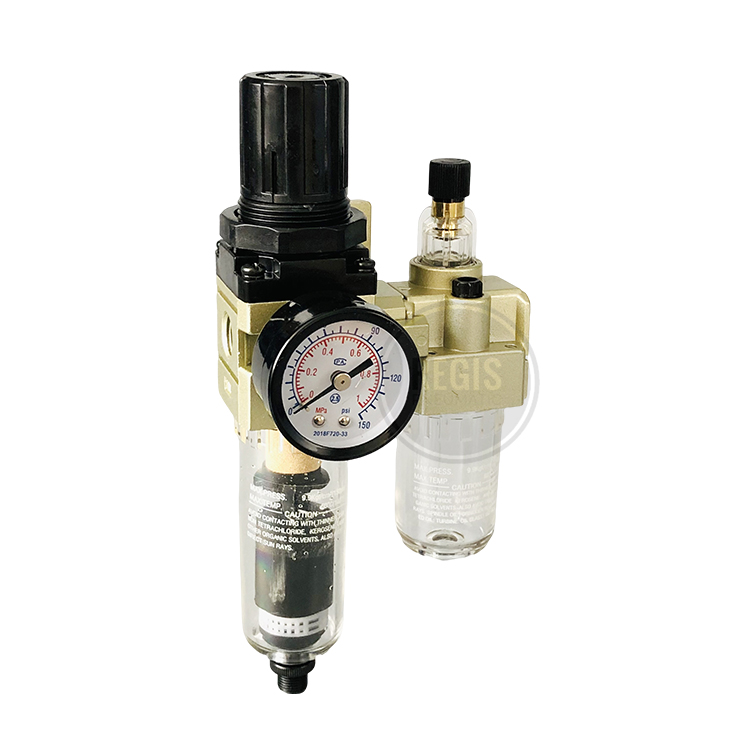

REGIS Air Filter Regulator Lubricator HC2010-D
Item HC
Mfr. Model HC2010-01/02D
View Product Details
|
|||||
| HC3010-02/03 | 02-G1/4" / 03-G3/8" | 25μm / 5μm | FR+L w/ Manual Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |
|
|||||
| HC3010-02/03D | 02-G1/4" / 03-G3/8" | 25μm / 5μm | FR+L w/ Auto Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |
|
|||||
| HC4010-04/06 | 04-G1/2" / 06-G3/4" | 25μm / 5μm | FR+L w/ Manual Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |
|
|||||
| HC5010-06/10 | 06-G3/4" / 10-G1" | 25μm / 5μm | FR+L w/ Manual Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |
|
|||||

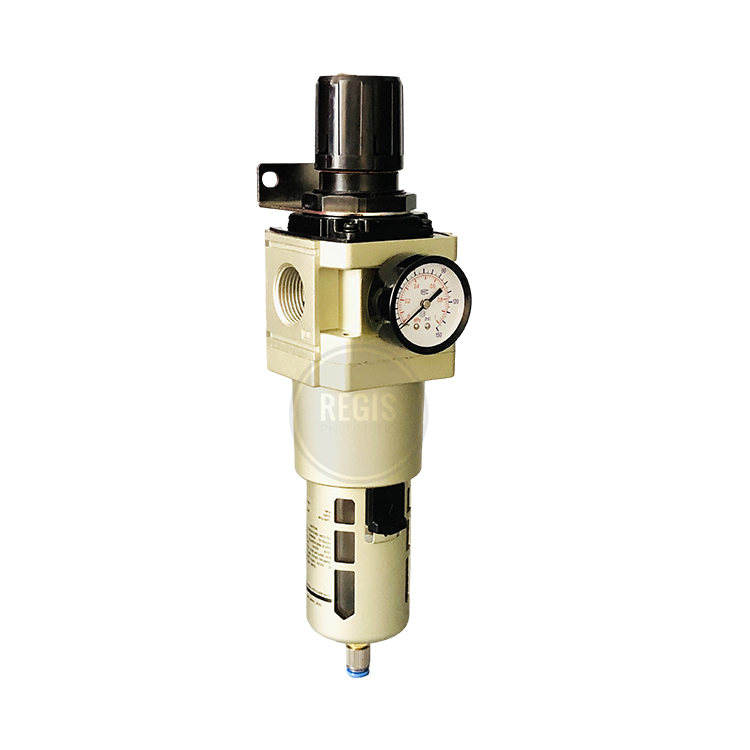

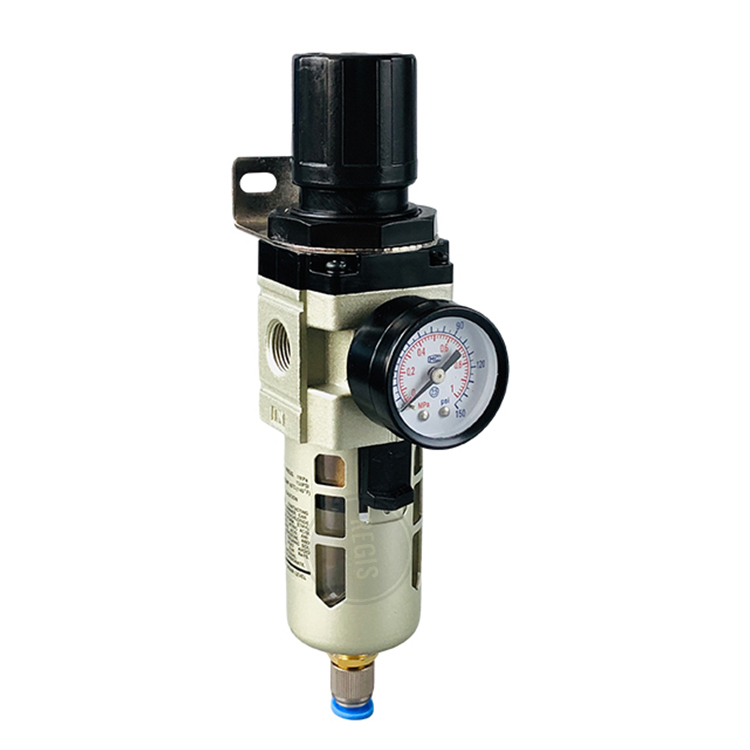

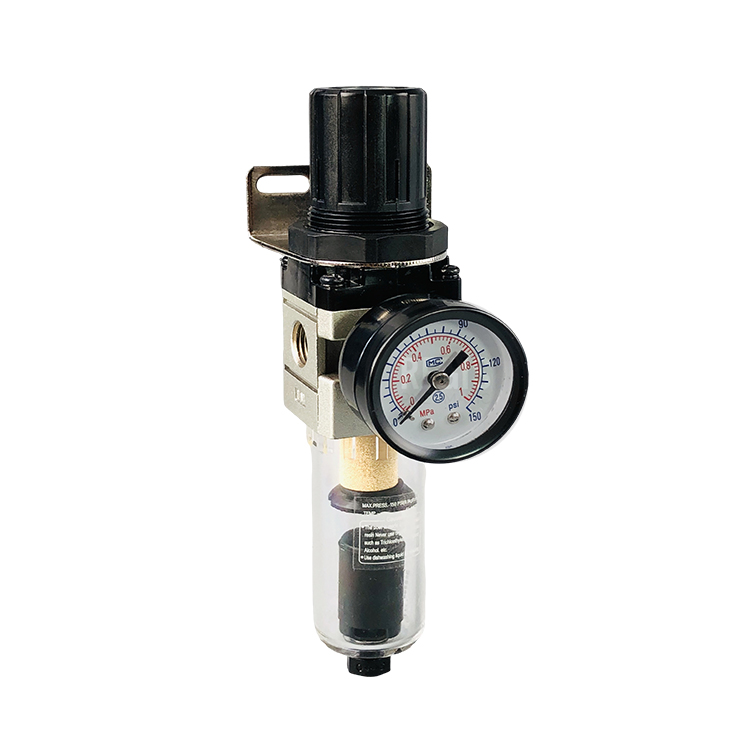

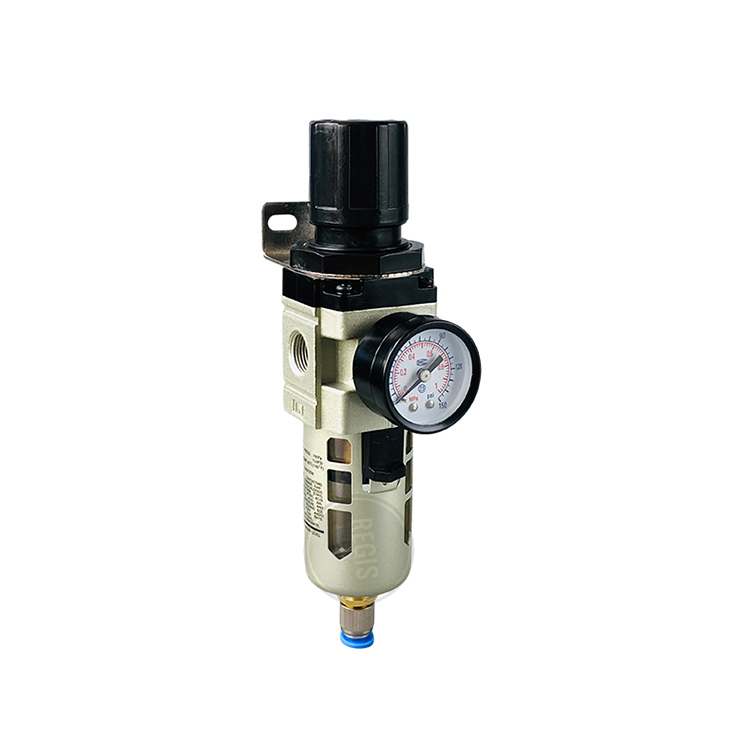

The HW combines a filter, a regulator into one unit. The drain part of H series is a one-touch fitting structure.HW10/20 Series is with transparent bowl. HW30/40/50 bowl is covered with metal guard.
| Model | Port Size | Filter Precision | Assembly | Inlet Pressure | Set Pressure |
|---|---|---|---|---|---|
| HW2000-01/-02 | 01-G1/8" / 02-G1/4" | 25μm / 5μm | F+R w/ Manual Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |
|
|||||
| HW2000-01/02D | 01-G1/8" / 02-G1/4" | 25μm / 5μm | F+R w/ Auto Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |
|
|||||
| HW3000-02/03 | 02-G1/4" / 03-G3/8" | 25μm / 5μm | F+R w/ Manual Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |
|
|||||
| HW4000-04/06 | 04-G1/2" / 06-G3/4" | 25μm / 5μm | F+R w/ Manual Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |
|
|||||
| HW5000-06/10 | 06-G3/4" / 10-G1" | 25μm / 5μm | F+R w/ Manual Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |
|
|||||

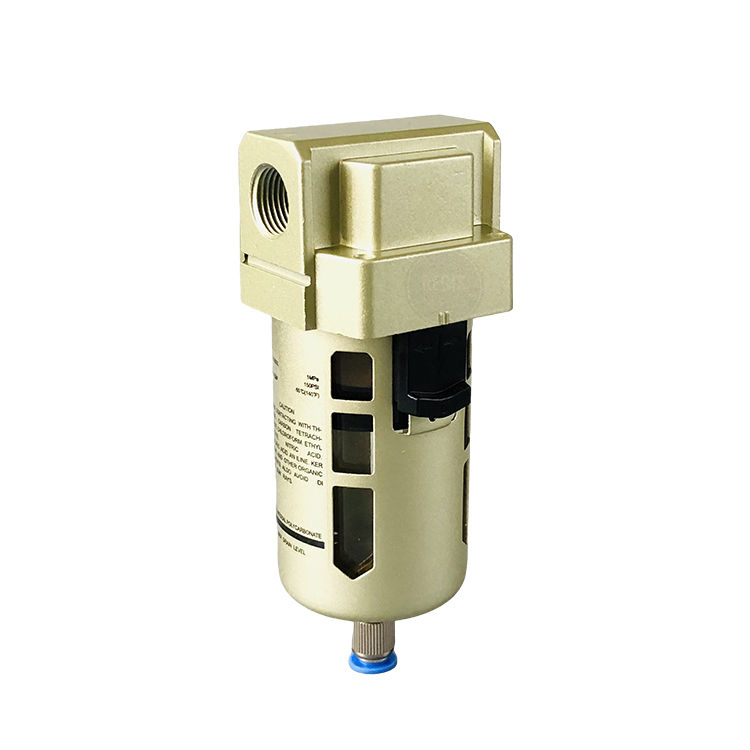

The HF is a filter. Improved usability: the element and bowl are combined into one unit, making it possible to replace the element by hand.
HF10/20 Series is with transparent bowl. HF30/40/50 bowl is covered with metal guard.
| Model | Port Size | Filter Precision | Assembly | Inlet Pressure | Set Pressure |
|---|---|---|---|---|---|
| HF2000/3000/4000/5000 | G1/8" - G1" | 25μm / 5μm | Filter w/ Manual Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |
|
|||||
| HF2000/3000/4000/5000D | G1/8" - G1" | 25μm / 5μm | Filter w/ Auto Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |

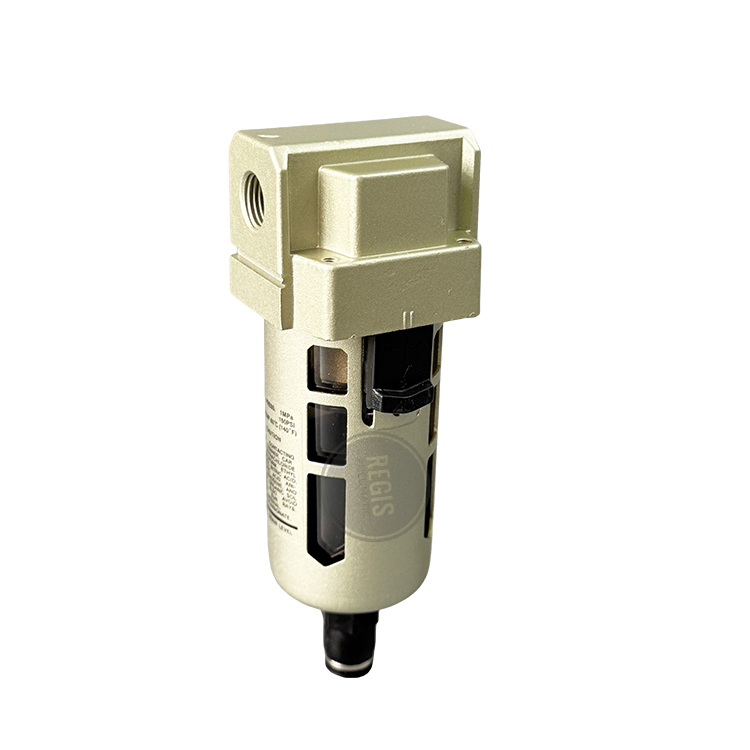

REGIS Air Filter HF Auto Drain Series
Item HF
Mfr. Model HF2000/3000/4000/5000D
View Product Details
|
|||||

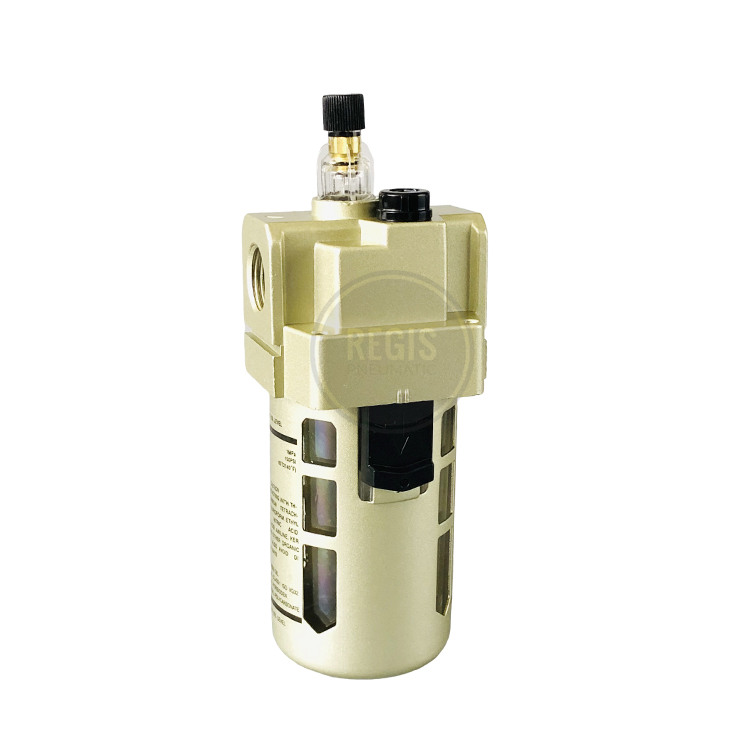

The HL is a Lubricator. Improved visibility and environmental resistance
HL10/20 Series is with transparent bowl.HL30/40/50 bowl is covered with metal guard.
| Model | Port Size | Filter Precision | Assembly | Inlet Pressure | Set Pressure |
|---|---|---|---|---|---|
| HL2000/3000/4000/5000 | G1/8" - G1" | 25μm / 5μm | Air Lubricator | 0.15-1.0Mpa | 0.05-0.85Mpa |
|
|||||

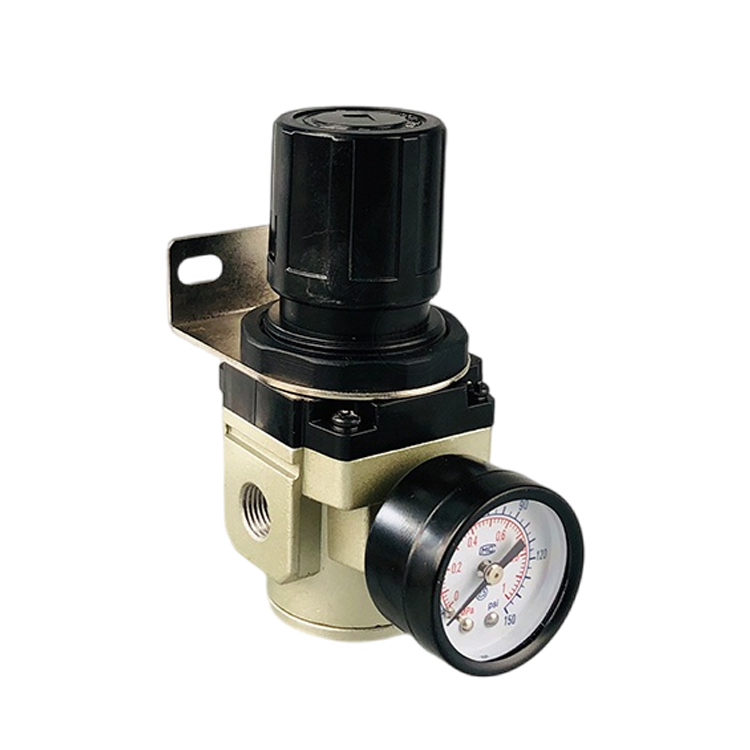

The HR is a Regulator. Compressed air pressure regulators are used to reduce the pressure and keep it consistent. Pressure drop amount: Improved by up to 50%.
| Model | Port Size | Filter Precision | Assembly | Inlet Pressure | Set Pressure |
|---|---|---|---|---|---|
| HR1000/2000/3000/4000/5000 | G1/8" - G1" | 25μm / 5μm | Air Regulator | 0.15-1.0Mpa | 0.05-0.85Mpa |
|
|||||
