Quality Is Our Attitude
FRL units are parts installed to prevent problems in air-pressure lines. The name FRL unit comes from the 3 items usually used in the set—an air filter (F), regulator (R) and lubricator (L).
HI unit’s pressure gauges are embedded into the valve body for saving the space.

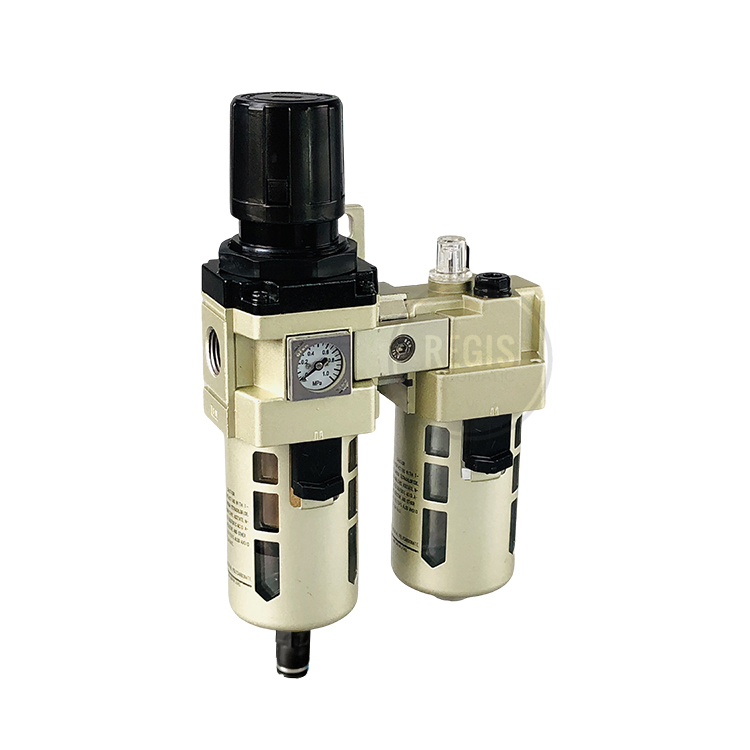

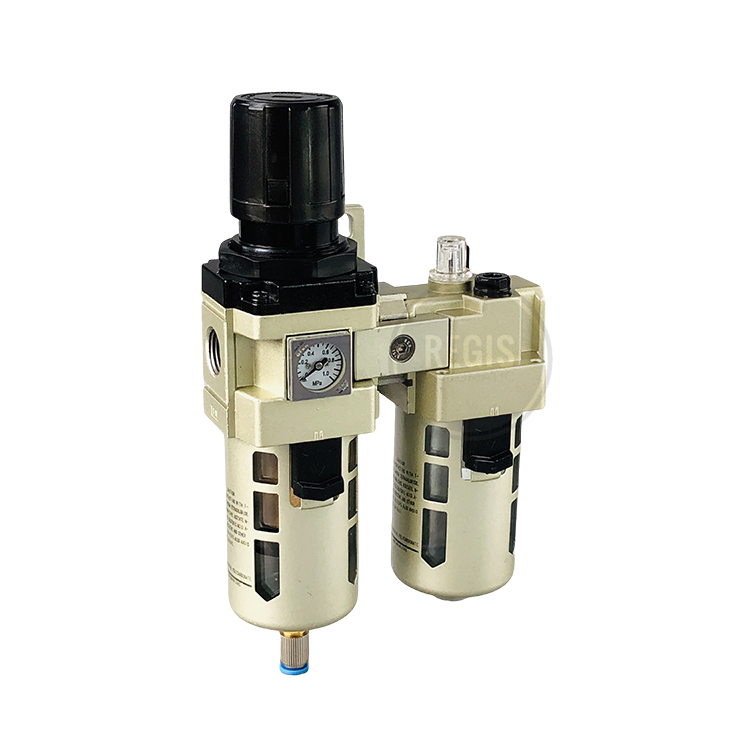

The HIC combines a filter, a regulator and mist separator into one unit. The drain part of H series is a one-touch fitting structure. Built in pressure meter.
| Model | Port Size | Filter Precision | Assembly | Inlet Pressure | Set Pressure |
|---|---|---|---|---|---|
| HIC2010/3010/4010/5010 | G1/8" - G1" | 25μm / 5μm | FR+L w/ Manual Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |
REGIS Air Filter Regulator Lubricator Embedded Gauge HIC Series
Item HIC
Mfr. Model HIC2010/3010/4010/5010
View Product Details
|
|||||
| HIC2000/3000/4000/5000D | G1/8" - G1" | 25μm / 5μm | FR+L w/ Auto Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |
REGIS Air Filter Regulator Lubricator Embedded Gauge HIC-D Series
Item HIC
Mfr. Model HIC2000/3000/4000/5000D
View Product Details
|
|||||

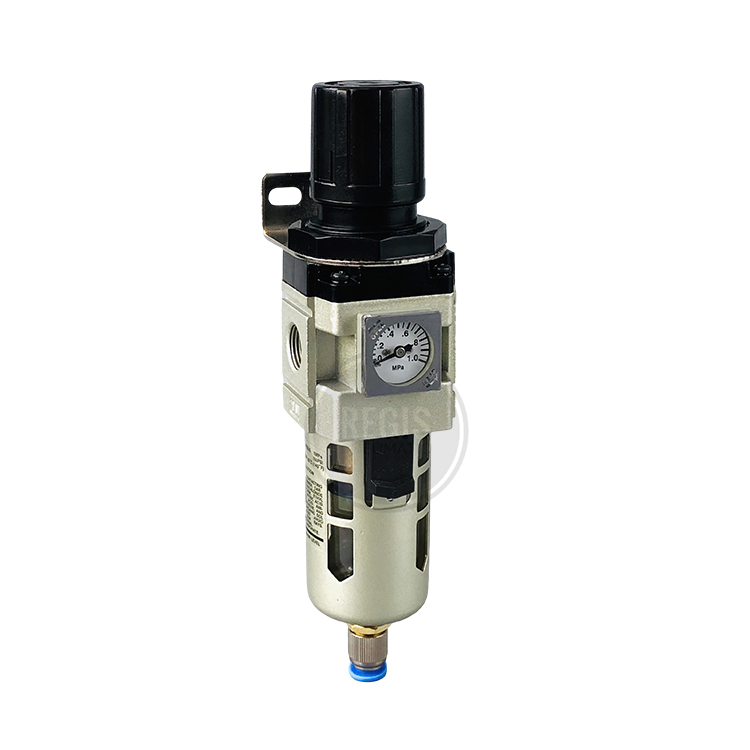

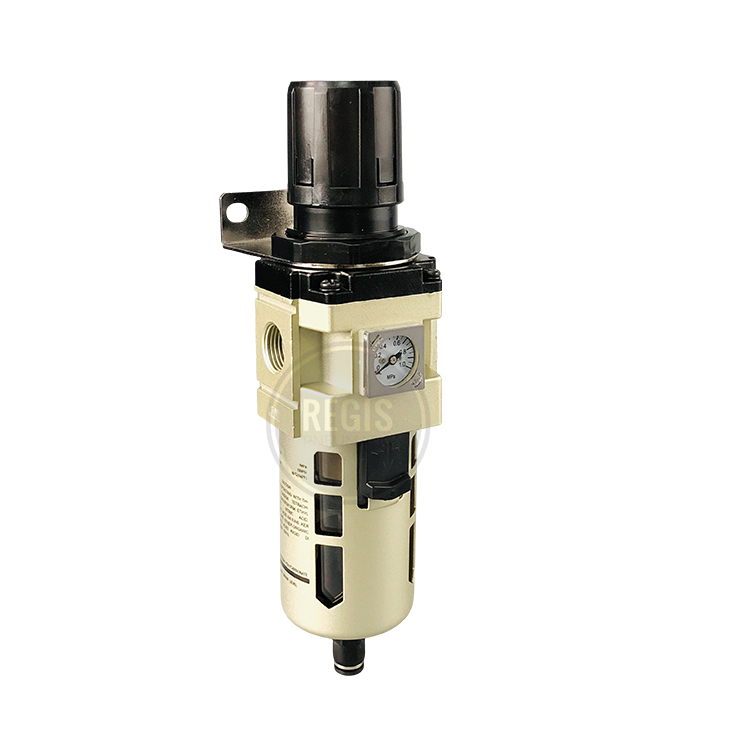

The HIW combines a filter, a regulator into one unit. The drain part of H series is a one-touch fitting structure. Built in pressure meter.
| Model | Port Size | Filter Precision | Assembly | Inlet Pressure | Set Pressure |
|---|---|---|---|---|---|
| HIW2000/3000/4000/5000 | G1/8" - G1" | 25μm / 5μm | F+R w/ Manual Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |
REGIS Air Filter Regulator Embedded Gauge HIW Series
Item HIW
Mfr. Model HIW2000/3000/4000/5000
View Product Details
|
|||||
| HIW2000/3000/4000/5000D | G1/8" - G1" | 25μm / 5μm | F+R w/ Auto Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |
REGIS Air Filter Regulator Embedded Gauge HIW-D Series
Item HIW
Mfr. Model HIW2000/3000/4000/5000D
View Product Details
|
|||||

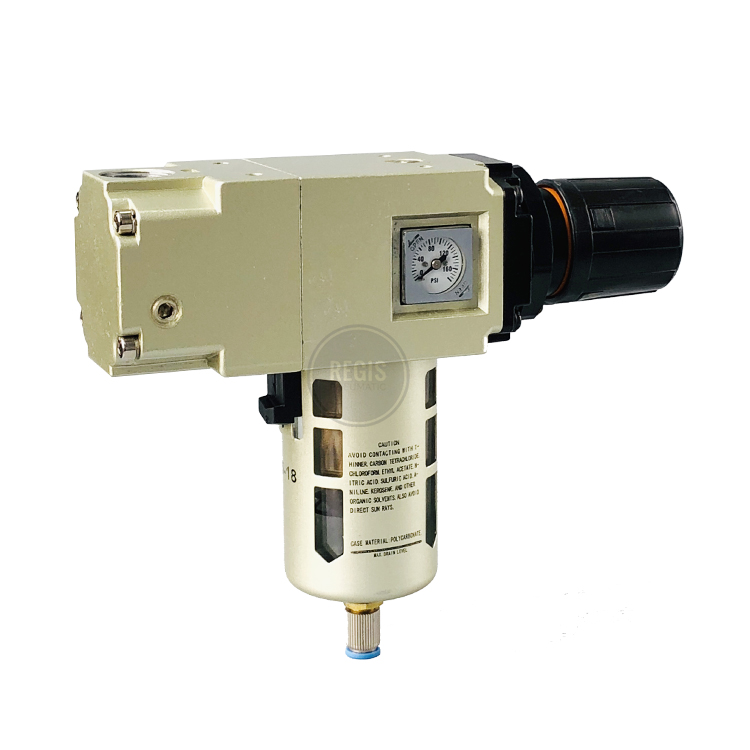

| K96075 | 3/4"NPT | 25μm / 5μm | F+R w/ Manual Drain | 0.15-1.0Mpa | 0.05-0.85Mpa |
REGIS Vertical Air Filter Regulator Embedded Gauge K96075
Item HIW
Mfr. Model K96075
View Product Details
|
|||||

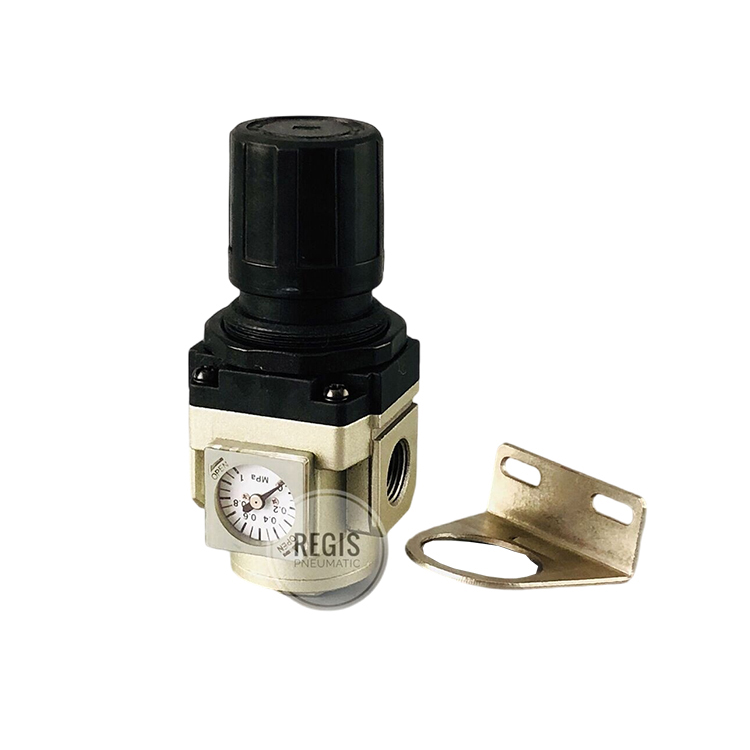

The HIR is a Regulator. Compressed air pressure regulators are used to reduce the pressure and keep it consistent. Built in pressure meter.Pressure drop amount: Improved by up to 50%
| Model | Port Size | Filter Precision | Assembly | Inlet Pressure | Set Pressure |
|---|---|---|---|---|---|
| HIR2000/3000/4000/5000 | G1/8" - G1" | 25μm / 5μm | Air Regulator | 0.15-1.0Mpa | 0.05-0.85Mpa |
REGIS Air Regulator Embedded Gauge HIR Series
Item HIR
Mfr. Model HIR2000/3000/4000/5000
View Product Details
|
|||||
