A mini pneumatic cylinder is a compact air actuator designed for small installation spaces and low to medium force output applications.
The primary role of mini round cylinders is to convert compressed air energy into linear motion. This linear actuation is crucial in various industrial processes where the movement of components, such as doors, gates, or manufacturing equipment, is required. Round cylinders serve as the driving force behind the controlled and precise movement of these elements.
Common Compact air cylinders include DSNU, MAL, and MA series cylinders.
It is FESTO type Round cylinder. Ultra-thin air cylinder, renowned for its extreme compactness and lightweight design
DSNU series mini-cylinder are designed and produced in accordance with ISO6432 international standards and CETOP RP52P standards. The cylinder bore is from 8mm to 63mm. And for bore sizes 8mm, 10mm, 12mm, the cylinder is only with elastic cushioning while you can choose pneumatic cushioning, adjustable at both ends for bore sizes from 16mm to 63mm.
| Bore Size | Stroke Length | Port Size | Acting Type | Working Pressure | Magnet Switch |
|---|---|---|---|---|---|
| DSNU ø8 to ø25 | Multiple | M5X0.8 | Double Acting | 0.1-1.0Mpa | CMSG / DMSG |

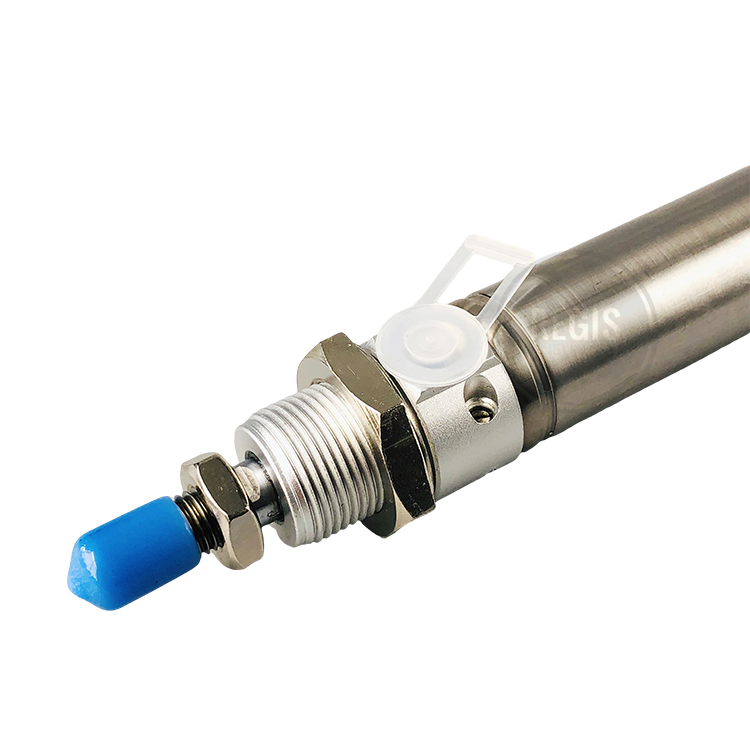

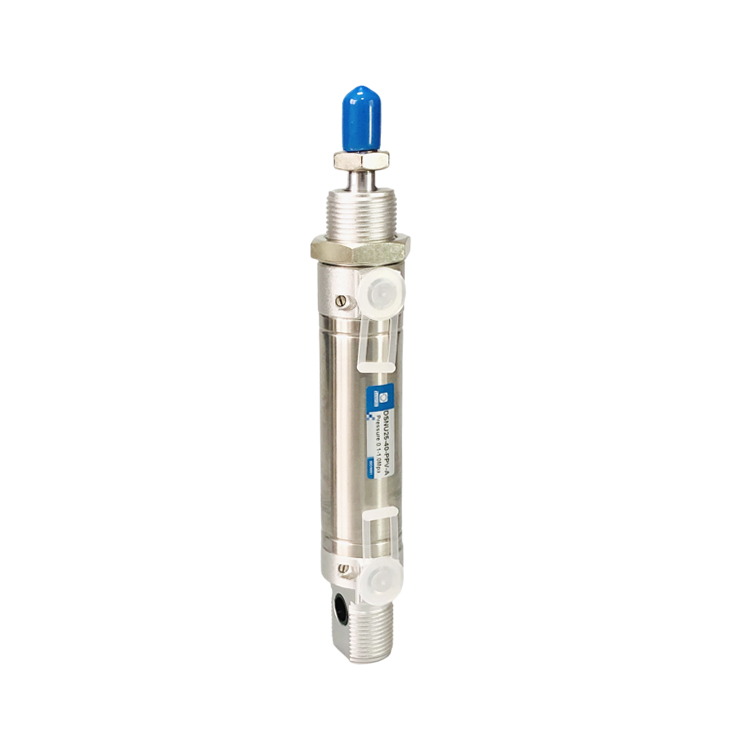

DSNU ø8 to ø25 Round Cylinder - Stainless Steel Barrel, Double Acting, DSNU Series
Item DSNU
Mfr. Model DSNU ø8 to ø12 -P-A, DSNU ø16 to ø25-PPV-A
View Product Details
|
|||||
| DSNU ø32 to ø63 | Multiple | G1/8 to G3/8 | Double Acting | 0.1-1.0Mpa | CMSG / DMSG |

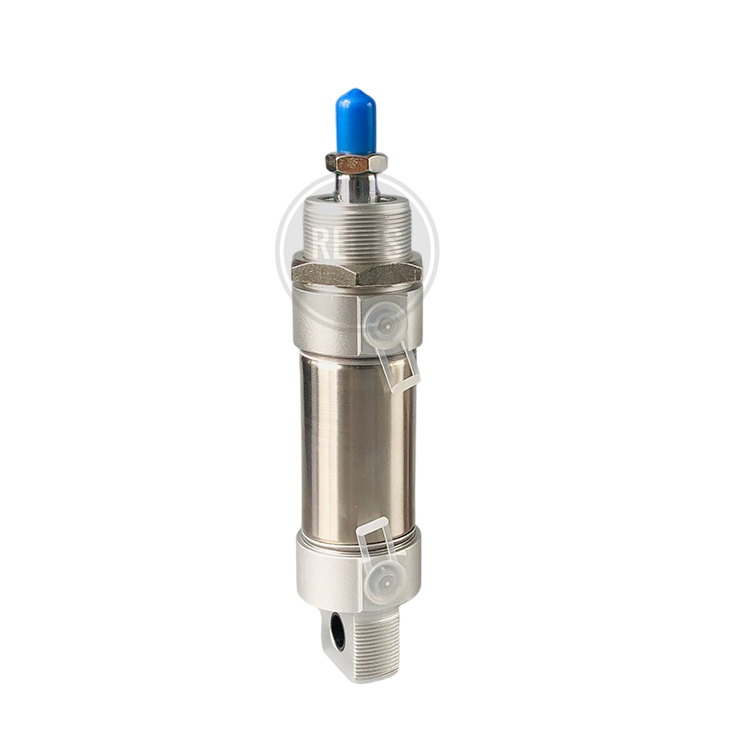

DSNU ø32 to ø63 Round Cylinder - Stainless Steel Barrel, Double Acting, DSNU Series
Item DSNU
Mfr. Model DSNU ø32 to ø63-PPV-A
View Product Details
|
|||||
| DSNU-MQ ø8 to ø63 | Multiple | M5 to G3/8 | Double Acting | 0.1-1.0Mpa | CMSG / DMSG |
DSNU-MQ ø8 to ø63 Round Cylinder - Stainless Steel Barrel, Transverse Supply Port
Item DSNU
Mfr. Model DSNU-MQ ø8 to ø63
View Product Details
|
|||||
| DSNU-Q ø8 to ø63 | Multiple | M5 to G3/8 | Double Acting | 0.1-1.0Mpa | CMSG / DMSG |

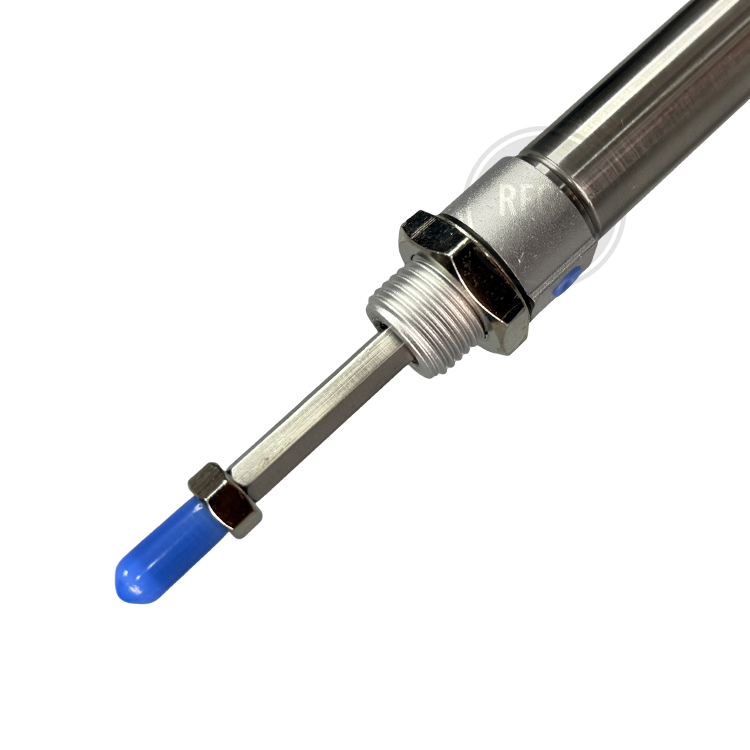

DSNU-Q ø8 to ø63 Round Cylinder - Stainless Steel Barrel, Square Piston Rod.
Item DSNU
Mfr. Model DSNU-Q ø8 to ø63
View Product Details
|
|||||
ESNU Single Acting Mini Round Aluminum Pneumatic Cylinder
| Bore Size | Stroke Length | Port Size | Acting Type | Working Pressure | Magnet Switch |
|---|---|---|---|---|---|
| ESNU ø8 to ø25 | Multiple | M5X0.8 | Single Acting | 0.15 to 1,0Mpa | CMSG / DMSG |

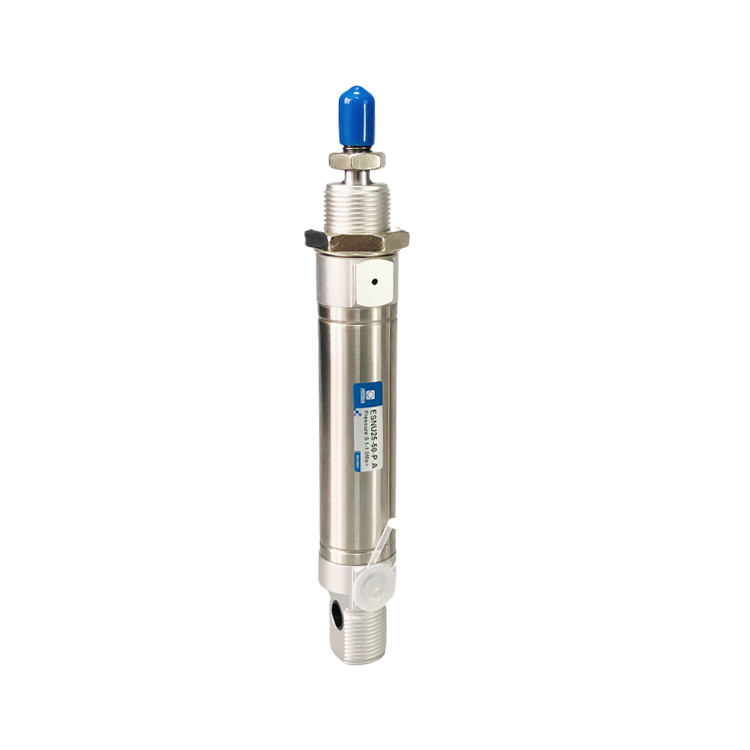

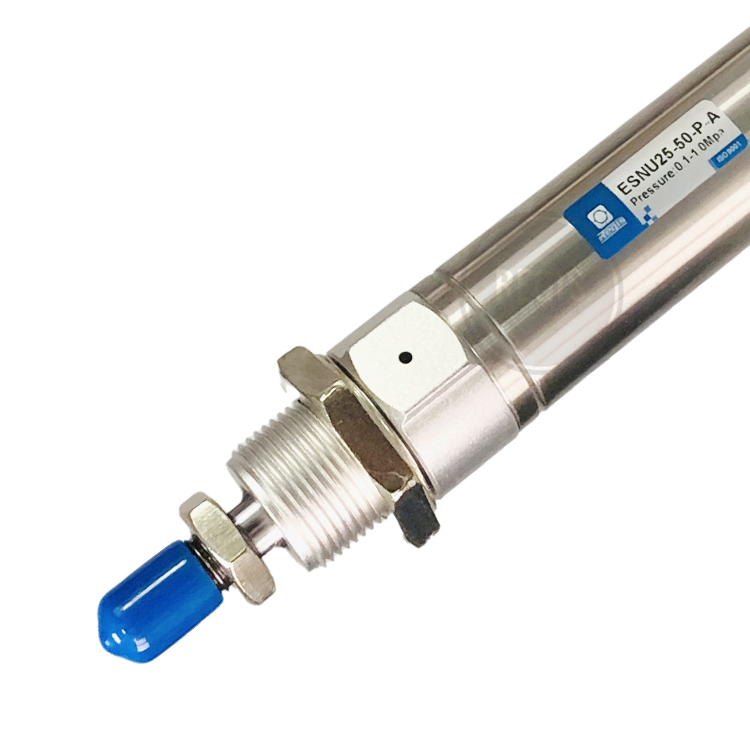

ESNU ø8 to ø25 Round Cylinder - Stainless Steel Barrel, Single Acting, ESNU Series
Item ESNU
Mfr. Model ESNU ø8 to ø25
View Product Details
|
|||||
It is Airtac type Round cylinder.
It offers a compact and space-saving solution for linear motion applications. Designed with a lightweight aluminum alloy barrel and high-strength piston rod, it delivers smooth operation and stable performance in tight spaces.
| Bore Size | Stroke Length | Port Size | Acting Type | Working Pressure | Magnet Switch |
|---|---|---|---|---|---|
| MAL ø16 to ø40 | Multiple | G1/8 | Double Acting | 0.1-1.0Mpa | CMSG / DMSG |

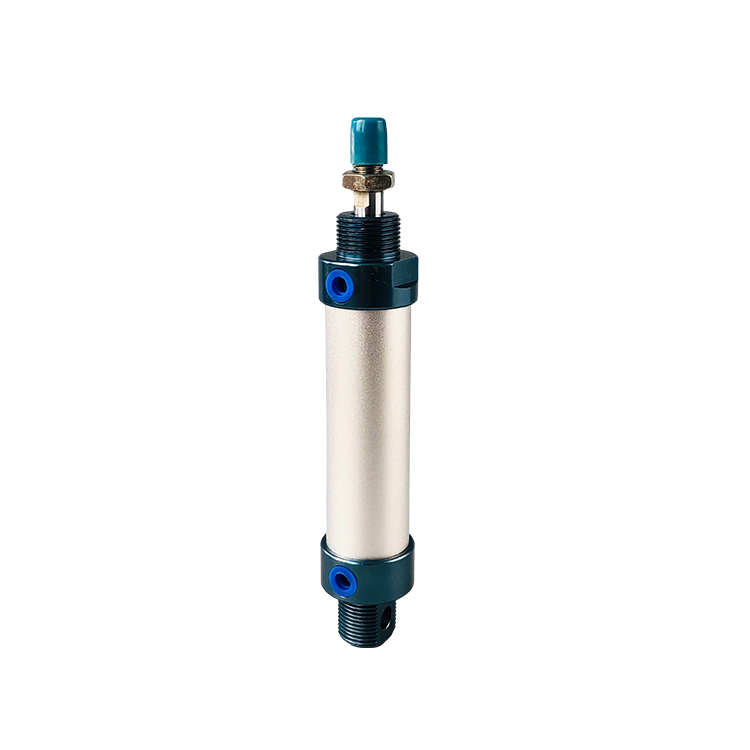

MAL ø16 to ø40 Round Cylinder - Aluminum Barrel, Double Acting, MAL Series
Item MAL
Mfr. Model MAL ø16 to ø40
View Product Details
|
|||||
| MA ø16 to ø40 | Multiple | G1/8 | Double Acting | 0.1-1.0Mpa | CMSG / DMSG |
MA ø16 to ø40 Round Cylinder – Stainless Steel Barrel, Double Acting, MA Series
Item MA
Mfr. Model MA ø16 to ø40
View Product Details
|
|||||
