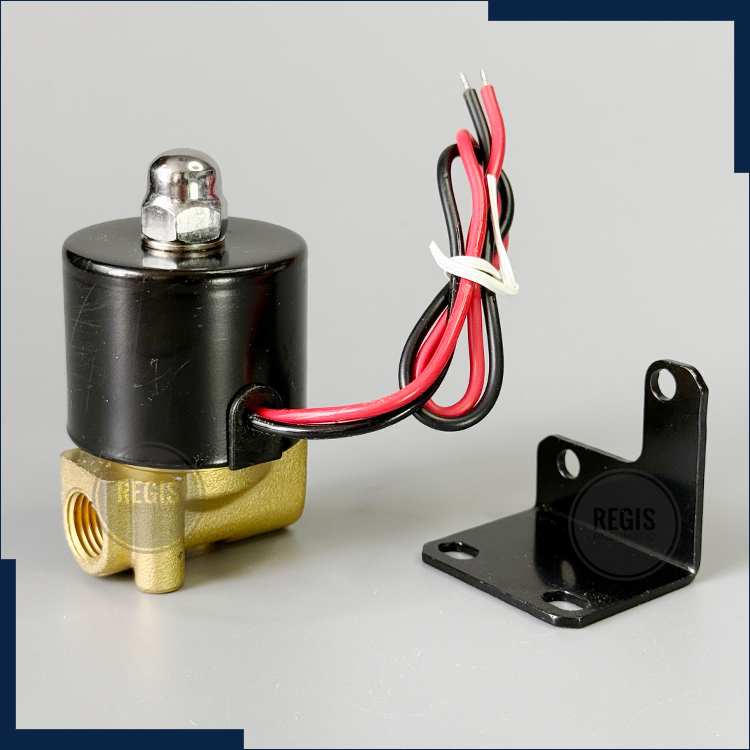

Air Ride Fast Solenoid Valve
REGIS air ride fast valves are designed for high flow, high reliability air suspension systems.
The unique design provides high pressure control at minimal power consumption.
Mounting brackets and repair kits are available
| Model | 2W025-08N | 2W160-10N | 2W160-15N |
| Working Medium | Air, Water, Oil | ||
| Motion Pattern | Direct Drive Type | ||
| Type | Normal Close Type | ||
| Aperture of Flow Rate | 2.5 | 16 | 16 |
| CV Value | 0.23 | 4.8 | 4.8 |
| Port Size | NPT1/4" | NPT3/8" | NPT1/2" |
| Operation Fluid Viscosity | Below 20 CST | ||
| Working-pressure | 0~1.0Mpa | ||
| Max. Pressure Resistance | 1.2MPa | ||
| Operating Temperature | -5~+80 | ||
