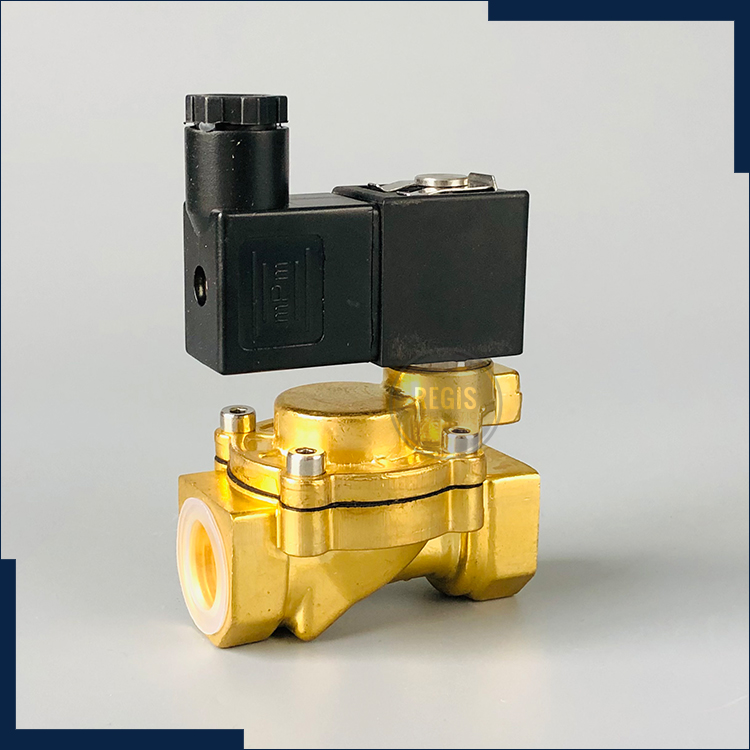

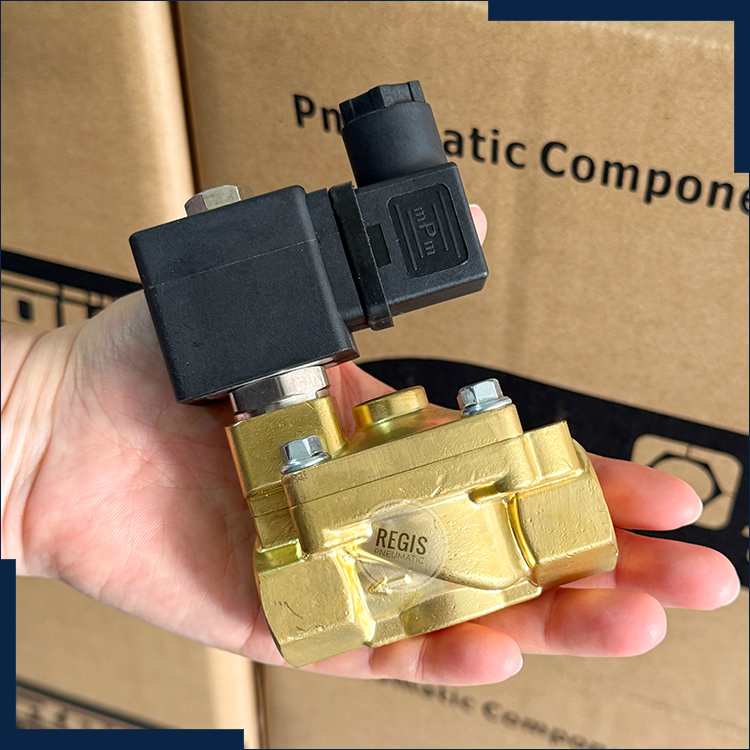

The Regis Series R8238, is a line of general service valves designed to handle air, inert gas, water, and light oil.
The 2-way pilot-operated solenoid valve’s compact construction saves space, reduces installation time, and simplifies service while its short stroke increases cycle life.
The R8238 Series is suitable for air ride suspension systems, commercial kitchen and laundry equipment, packaging, and water and wastewater systems.
| Model | R8238-10N | R8238-15N |
| Working Medium | Air, Water, Oil | |
| Motion Pattern | Direct Drive Type | |
| Type | Normal Close Type | |
| Aperture of Flow Rate | 12 | 12 |
| CV Value | 4.5 | 4.5 |
| Port Size | NPT3/8" | NPT1/2" |
| Operation Fluid Viscosity | Below 20 CST | |
| Working-pressure | 0.05~1.0Mpa | |
| Max. Pressure Resistance | 1.2MPa | |
| Operating Temperature | -5~+80 | |
