Quality Is Our Attitude

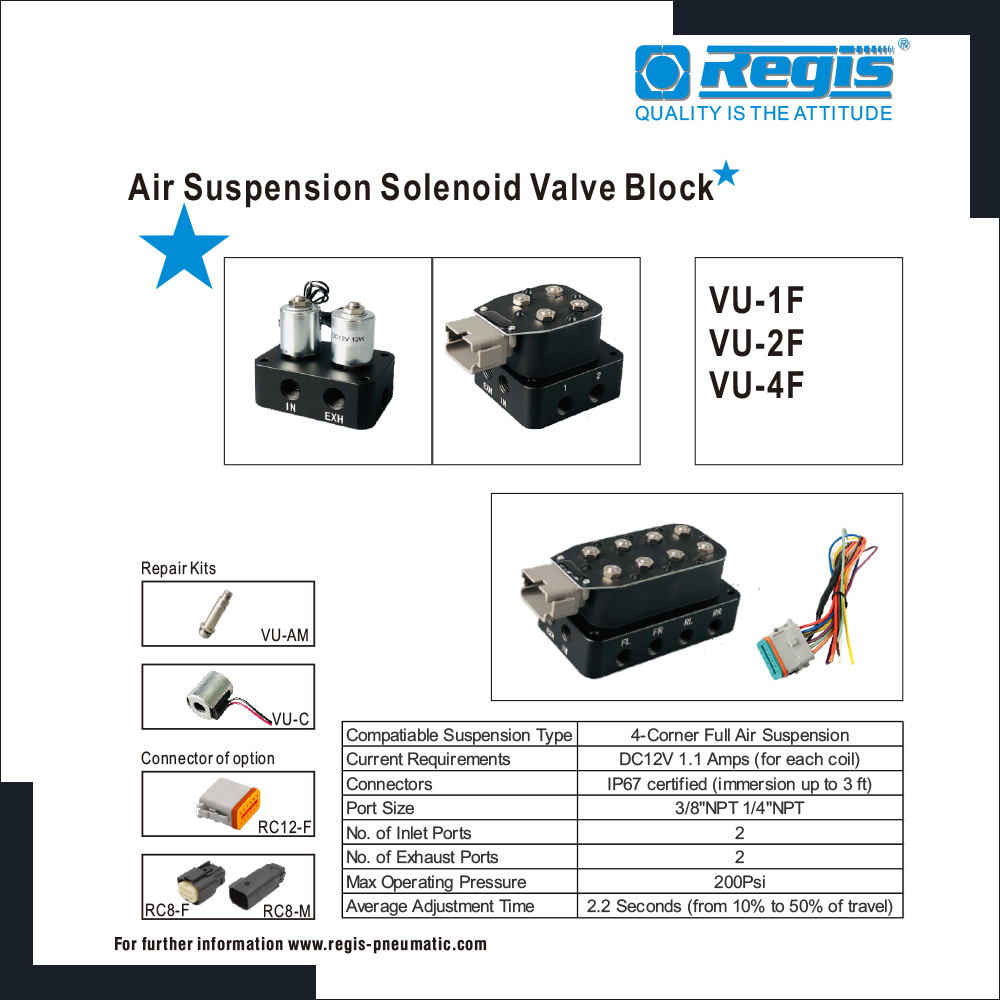

| Compatiable Suspension Type | 4-Corner Full Air Suspension |
| Voltage Requirements | 10.5-16 Volts |
| Current Requirements | 1.1 Amps (for each of the (8) Valves) |
| Valve Material | Aluminum Alloy |
| Connectors | IP67 |
| Fitting Size | 3/8"NPT x 4 / 1/4" NPT x 2 |
| No. of Inlet Ports | 2 |
| No. of Exhaust Ports | 2 |
| Max Operating Pressure | 200Psi |
| Cv Flow Factor | 0.33 |
| Average Adjustment Time | 2.2 Seconds (from 10% to 50% of travel) |
| Brand | REGISAIR or OEM |
| MORE SUSPENSION PARTS |
| 160-NF air suspenison manifolds |
| VUX2F manifold |
| Accuair VU-4F valve block with AVS switchbox |
| AA-ROT-120 height sensor with Wiring harness cable |
| Pressure Switch for air compressor |
| Water-proof VUX4F valve block with Switch Controller |
| Air Tank |
| Pressure Sensor Transducer |
| 444C/480C Air Compressor |
