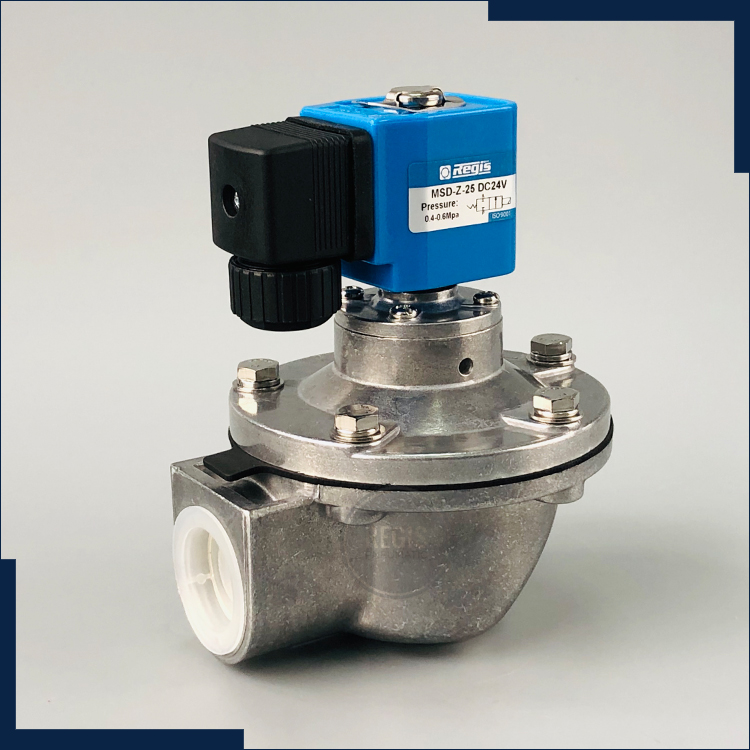

| Model | MSD-Z-20 | MSD-Z-25 | MSD-Z-40 | MSD-Z-50 | MSD-Z-62 | MSD-Z-76 |
| Operating pressure | 0.3~0.8Mpa | |||||
| Ambient & fluid temperature | -5~60°C | |||||
| Fluids | Clean Air | |||||
| Relative humidity | ≤80% | |||||
| Efffective area (mm²) | ∅20 | ∅25 | ∅40 | ∅50 | ∅62 | ∅76 |
| Port size | 3/4'' | 1'' | 1 1/2'' | 2'' | 2 1/2'' | 3 |
| Main parts material | Body:Aluminum alloy | |||||
| Seals | NBR | |||||
