Normally Closed 3-Way Solenoid Valve VF2130

REGIS PNEUMATIC

0086 574 88879977

Shop By Category

Quality Is Our Attitude

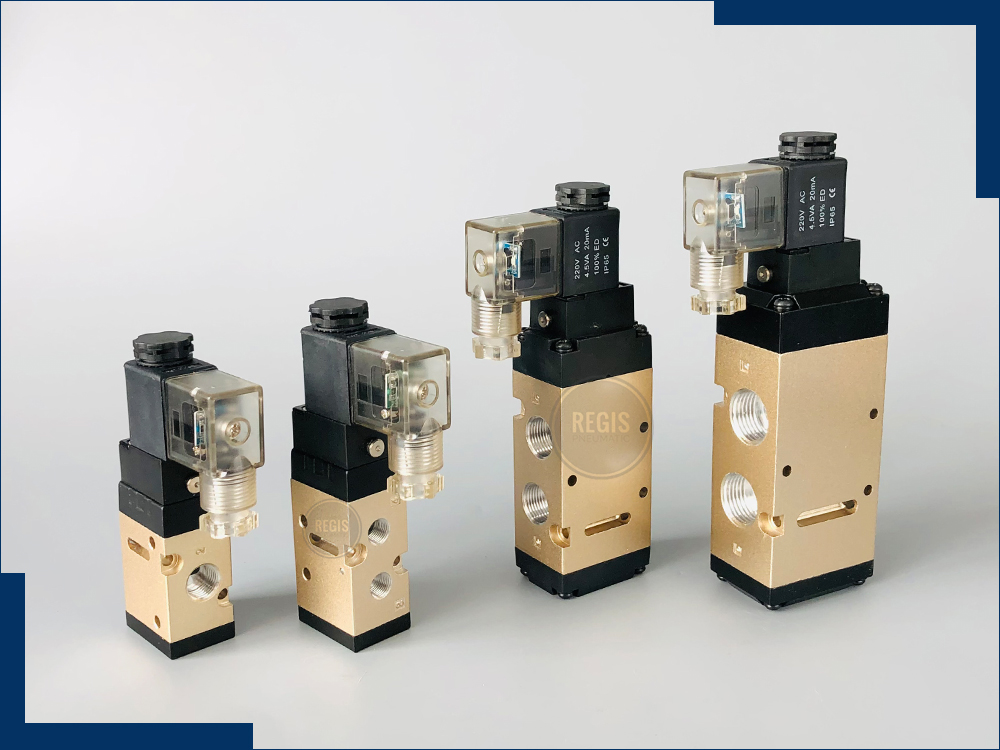

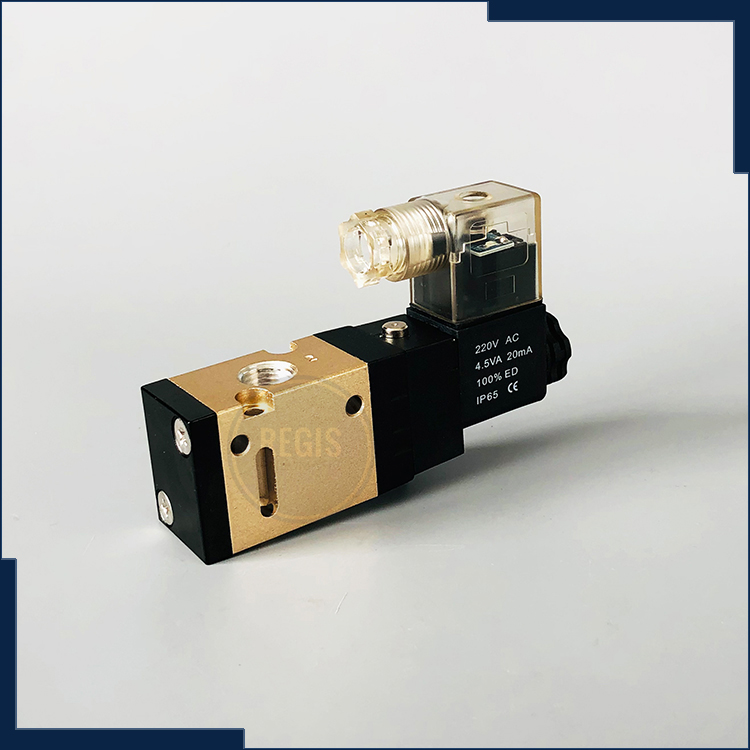

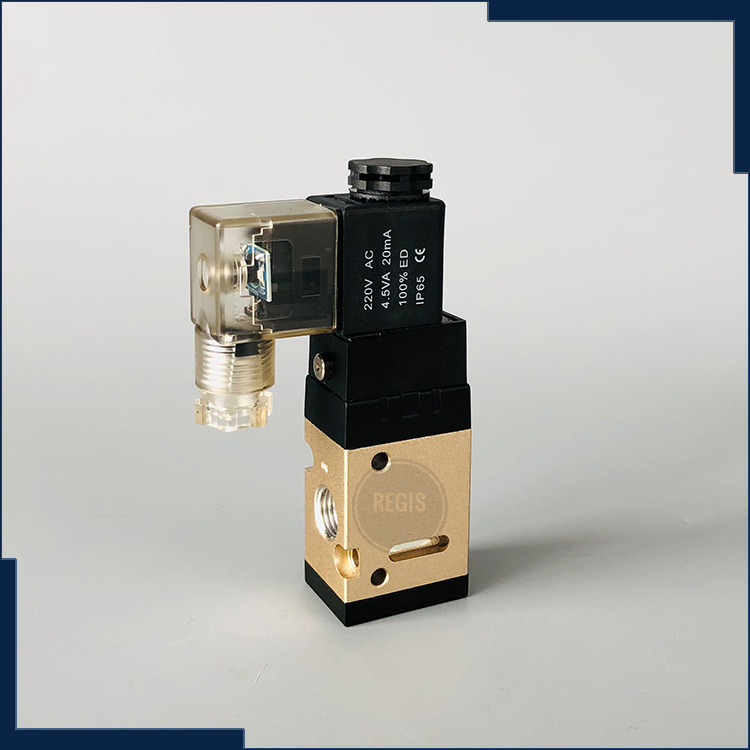

VF2130 2-Position 3-Port Solenoid Valve

Model	VF2130	VF2230	VF3130	VF3230	VF3330
Position and Way NO.	Two-position Three-way		Two-position Five-way		Three-position Five-way
Working-pressure	0.15-0.8Mpa
Effective Sectional Area	19mm²				11.5mm²
Highest Action Frequency	5c/sec				3c/sec
Working Medium	Air and Non-active Gas
Working Temperature	5-50⁰C
Motion Pattern	Inner Guide Type
Manual Operate	Keystroke Switch(Fixed) / Knob Switch (Choice)
Insulation & Protection Class	F Class
Voltage Range	Rated Voltage ±10%
Wiring Form	G OR L
Power Consumption	AC:4.5VA DC:3W
Shortest Excitation Time	0.05 Second

Make an Enquiry

Contact Our Regis on ,
or perhaps you'd like to mail us for details.

REGIS HINTS

Inner Guide Type

Wire leads coil is optional
