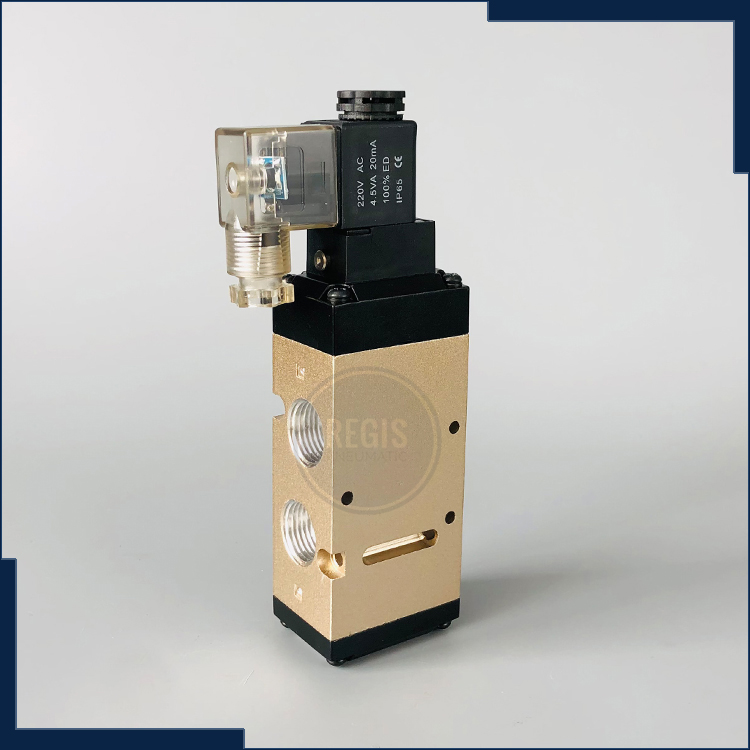

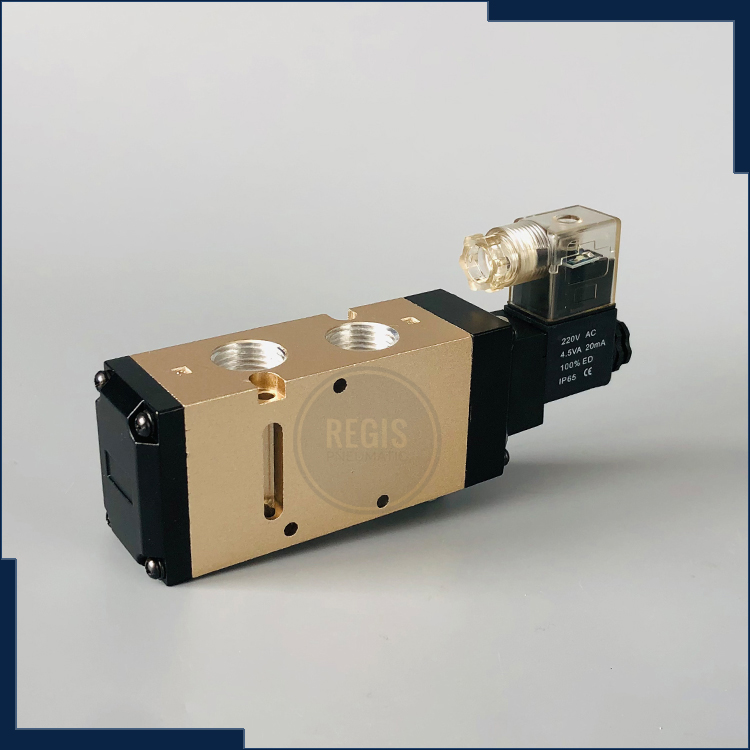

VF6120 2-Position 5-Port Solenoid Valve







ModelVF6120-15VF6220-15VF6330-15
Position and Way NO.Two-position Five-wayThree-position   Five-way
Working-pressure0.15-0.8Mpa
Effective Sectional Area65mm250mm2
Highest Action Frequency2c/sec1c/sec
Working MediumAir and Non-active Gas
Working Temperature5-500C
Motion PatternInner Guide Type
Manual OperateKeystroke Switch(Fixed) / Knob Switch (Choice)
Insulation & Protection ClassF Class
Voltage RangeRated Voltage ±10%
Wiring FormG OR L
Power ConsumptionAC:4.5VA    DC:3W
Shortest Excitation Time0.05 Second


Make an Enquiry
Contact Our Regis on ,
or perhaps you'd like to mail us for details.
Enquiry

REGIS HINTS

Inner Guide Type

Wire leads coil is optional
